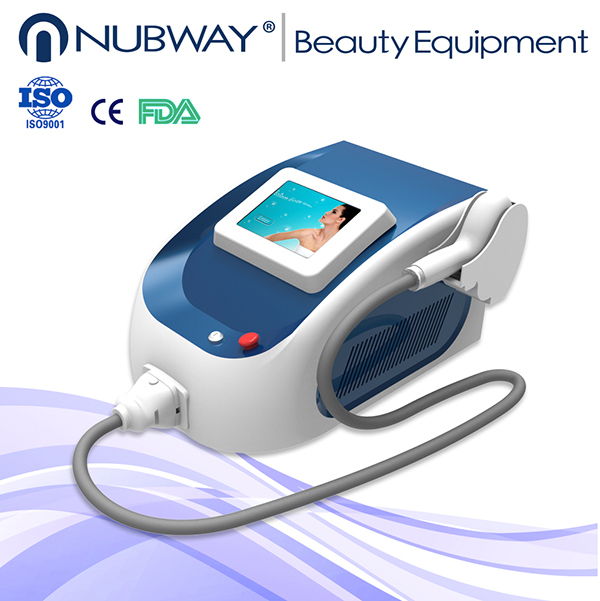

Tri cooling 12 hours constant working Portable diode laser hair removal machine easy work
Technical parameter below:
| Laser type | Semiconductor laser |
| wavelength | 808 nm |
| Output Mode | pulse output |
| Control Method | Touch control |
| Screen Size | 8.4 Inch |
| Energy density | 10~70J/cm2 (Deviation≤±2%) |
| Pulse width range | 1-400ms |
| Spot size | 12*20mm |
| Frequency | 1-10HZ |
| Light spot surface temperature | 0-30°C |
| Cooling System | Semiconductor+built-in water+Air Cooling triple cooling systems |
| Dimension | 600*360*300mm |
| Net weight | 20kg |
| Fuse specification | Ø5×2510A |
| Input Power | 1800W |
| Input Voltage | AC220V±10% 10A 50HZ , 110v±10% 10A 60HZ |

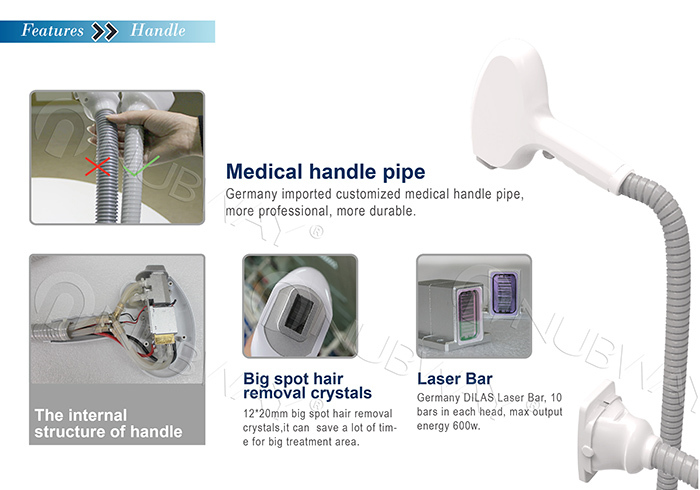

handpiece
Handle:
* 10 germany "dilas" laser bar inside . Total output 600w , 60w for each laser bar
* Spot size=12mm*20mm=2.4cm² , total energy output 24J~168J , average energy density 10~70J/cm²
* Shot time warranty (max energy,max frenquency): 20 millions
* Medical soft handle pipe .
Cooling
Strong Cooling continues working more than 24 hours
* Semiconductor- peltier elements 40*40mm double deck cooler
* Water-Medical use high pressure vane pump
* Wind-4 DC power fan with copper condensor
Operate system:
* 10.4 Inch touch screen
* Humanized interface . Loading , choose men or women , choose the skin type , choose the treatment area then start working . All suggest parameter settled well . Set your own parameter when skilled .
* Automatic detection : Water flow voclocity , flow capacity ,working temperature . Error display when meet unnormal situation .

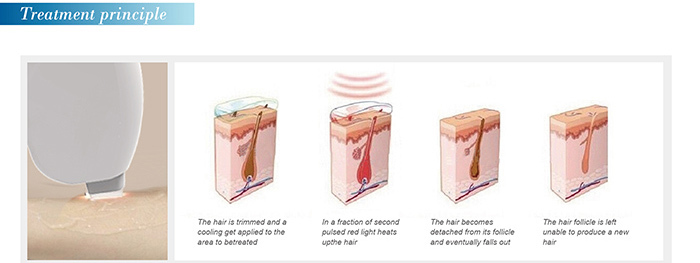

The basic principle of semiconductor laser hair removal treatment basics that the biological effects , the machine issued 808nm laser , 808nm laser is easily absorbed without damaging the epidermis colored hair follicle , the energy of light emitted can be absorbed by the hairfollicle pigmentation after conversion into heat , thus increasing temperature in the hair follicle , when the temperature rised to a certain extent , the hair follicles will suffer irresversible damage , after a period of time , the damaged follicles are excreted with the body's metabolism , so as to achieve permanent hair removal . Men and women all suitable with it for wholebody hair removal .
Details:
About us:
Beijing Nubway S&T Co,Ltd is a factory for Laser and Light based beauty aesthetic equipment. Main product included HIFUSHAPE focused untrasound hifu ,IPL SHR E-light machine,Cryolipolysis machine,diode Laser hair removal,spider vein/vascular removal,CO2 laser,nd yag laser tattoo removal, Oxygen facial intraceutical ,etc.
We have our own research and development departmentand our own factorys we can provide OEM and ODM service for the distributors all over the world. In beauty equipment industry, our factory is one of the biggest in China, it includes several production lines, Material Library, shipping department, Inspection Area.
We highly control the manufacturing process and quality assurance .
Our service:
1.2 years warranty, if there any problem happens with your machine, we will repair
it free of charge (except the intended damage)
2.Free training, user manual and operation video are available, also, if it is not
enough, we can provide the online face to face education
3.OEM/ODM services, your logo, outshape, language, interface can specially be designed on your machine
Pakage:Aluminum alloy case / wooden case
Shipping: DHL,TNT,UPS,FEDEX,EMS . Shipping code will sended .
Payment: Wire transfer; West Union ;Paypal ;
We hearty welcome to your visit .
